This section is from the book "Manual Training In The Grades", by Frank Halstead. Also available from Amazon: Manual Training In The Grades.

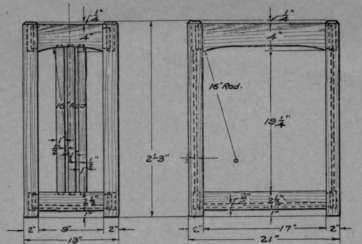

Side Elevation
Front Elevation
Steps | Tools | Order Of Exercise |
1. Mortise and tenon joint | 1. Pencil, rule, knife, and dividers | 1. Square and true stock. |
2. 1-2 inch bit | 2. Lay out and cut all mortises and tenons. | |
2. Tenon braces. | 3. Bit stock and gauge | |
4. Turning saw and spokeshave | 3. Cut out curve on upper brace. | |
5. Half-round file and cabinet scraper | 4. Glue together, sandpaper and • scrape. | |
6. Marking gauge and try-square | 5. Stain, fill, and varnish. | |
7. Block and Jack plane |
