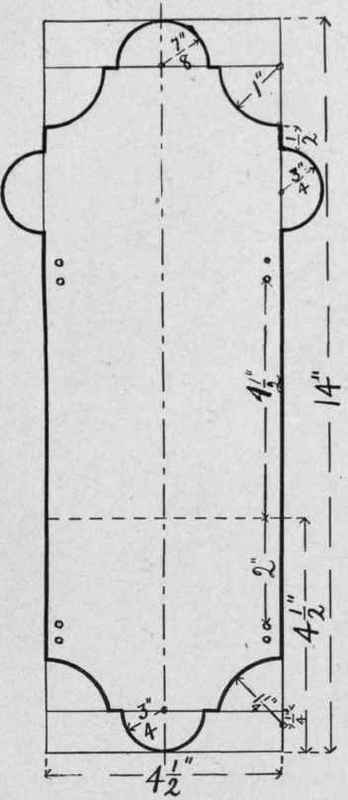

1. Construct rectangle 14" x 4½"
2. Draw lines ⅞" and -|" from each end respectively.
3. Find the centre of each of these lines, and describe the semicircles.
4. Locate the centres for the arcs and complete drawing.
Note. - Part B will form another pocket, its lower edge reaching down to the folding line between the two other parts.
